Protection that travels with you.

PERSONAL & PORTABLE AED

The compact Elliot AED gives individuals and families access to lifesaving equipment at home, on the road and in places where emergency help may be further away.

At just 680 grams, Elliot is a compact personal AED designed for home, travel and life on the move.

Clear voice and visual prompts guide the user through each stage, while its rugged construction makes it suitable for a wide range of environments.

Designed to go
wherever you do.

COMPACT. ROBUST. STRAIGHTFORWARD.

LIGHTWEIGHT
Just 680 grams with batteries and pads installed.

WATER & DUST RESISTANT
IP66 rated for use in demanding conditions.

BUILT FOR TEMPERATURE EXTREMES
Operates in environments from -20°C to 50°C.

ADULT & PAEDIATRIC USE
One pre-connected pad set with a dedicated paediatric mode.

CLEAR USER GUIDANCE
Audio and visual prompts with CPR coaching and a metronome.

LINKED SMARTPHONE APP
Monitor, train, share with the powerful HeartHero app.

STANDARD BATTERIES
Powered by four readily available CR123A batteries.

PERSONAL & PORTABLE AED

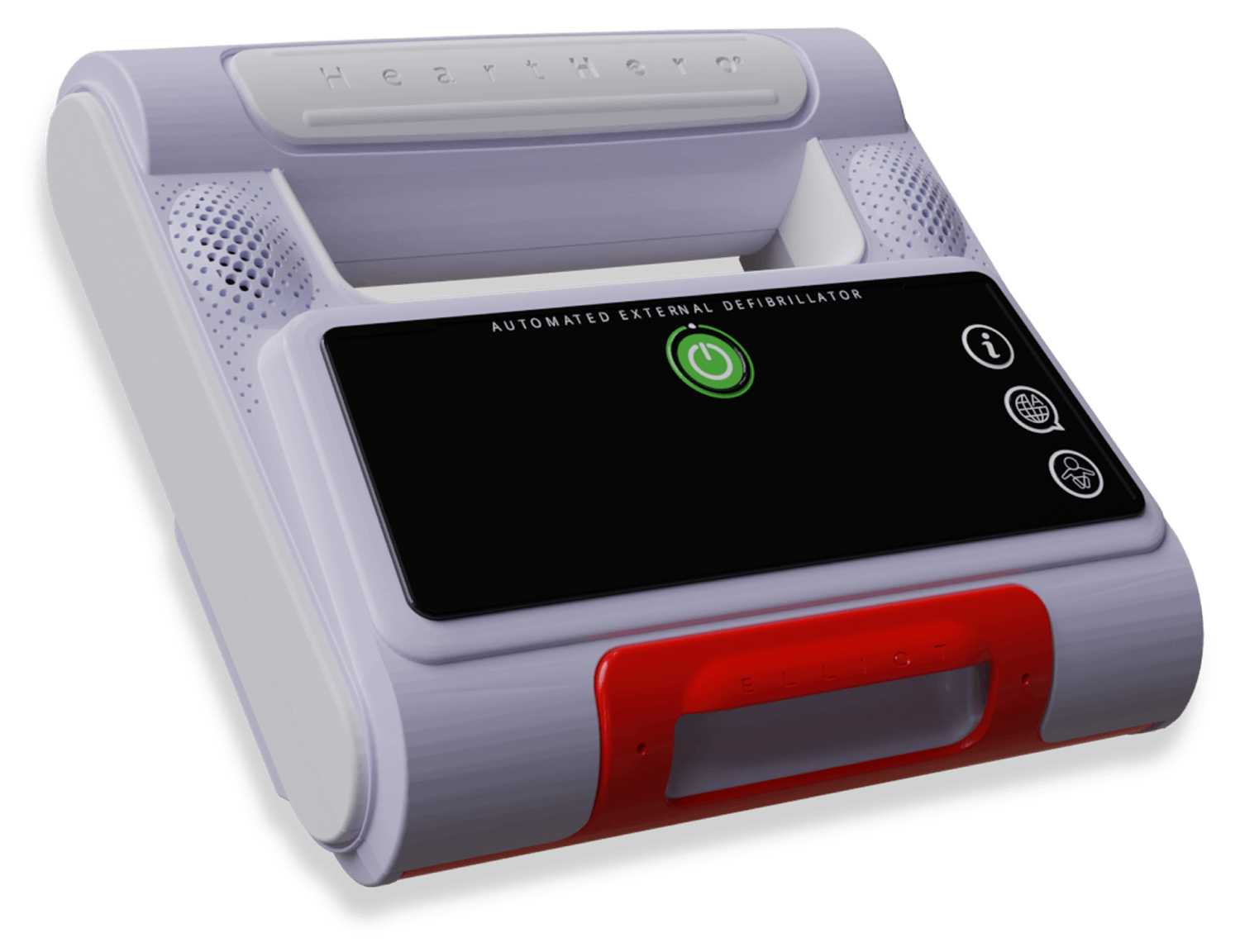

HeartHero Elliot AED

What’s included

  • HeartHero Elliot AED

  • Pre-connected adult and paediatric pads

  • Four Duracell CR123A batteries

  • Support from AED Ready

Specifications

  • Weight: 680 grams

  • Size: 15.5 × 15.85 × 4.58 cm

  • Operating temperature: -20°C to 50°C

  • Durability: confirm whether IP66 or IP68

  • Power: four CR123A batteries

  • Adult energy: 150 J

  • Paediatric energy: 50 J

  • Self-tests: daily, weekly and monthly

  • Expected service life: six years

$1,390 + shipping

BUY THE ELLIOT AED

See how Elliot works.

ELLIOT VIDEO GUIDE
DOWNLOAD BROCHURE
DOWNLOAD TECHNICAL MANUAL
